PRODUCT INFORMATION

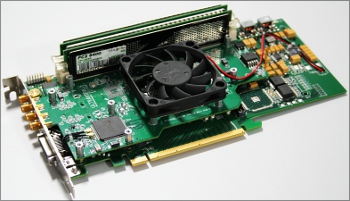

PCI Express A/D Board

AD8-1800 Series - Dual 8 bit, 1.8 GS/s

The AD8-1800 series has one or two 1800 MS/sec 8-bit ADCs, 8GB of on-board memory and the ability to transfer data directly into the host computer's memory at over 1 GB/sec. Streaming to the host computer can be performed simultaneously with acquisition to on-board memory, increasing the effective acquisition length by using the host computer's memory. Dual channel boards sample concurrently at twice the input clock frequency, and can also be software selected to run in single channel mode, providing twice the effective memory depth.

Included with each card are graphical waveform viewers, example user software (complete with source) code , and device drivers for Linux and Windows. The example software is intended to allow users to quickly prototype and develop their applications. Synchronization with external hardware is easily done using optional external clocking, external triggering, selective recording, and multiple user programmable TTL I/O.

For more detailed information on the AD8-1800 series of data acquisition products, please see the User Manual on the right.

NOTE: Any combination of channels, DRAM, and XC5VLX50T, XC5VLX110T, XC5VLX155T or XC5VSX95T may be specified.
