PRODUCT INFORMATION

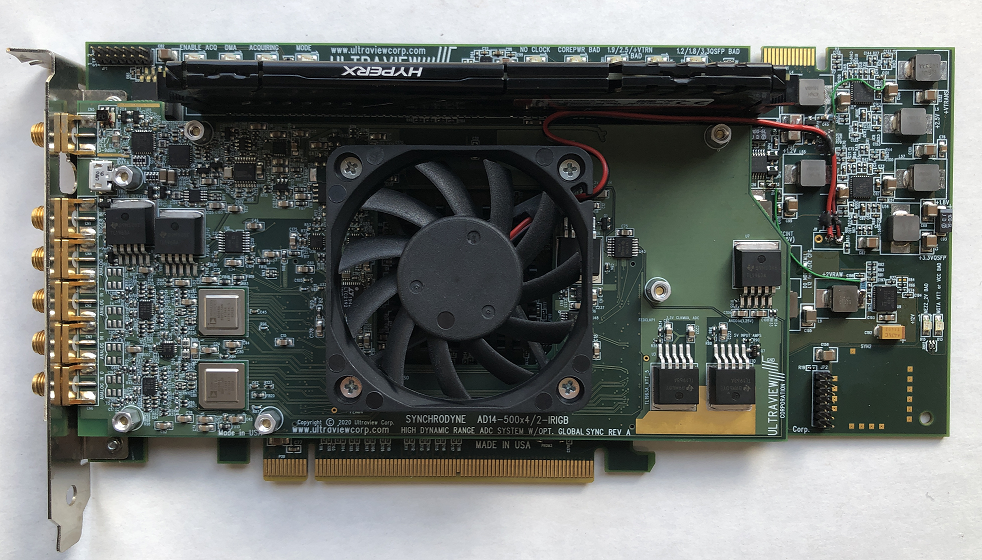

PCI Express A/d Board

AD14-500x4-IRIG - 14 bit

The AD14-500x4-IRIG is a high performance wideband 4-channel 14-bit data single PCIe Gen3 board, that can continuously digitize four wideband signals, with four high linearity A/Ds. A second board version AD14-500x4-K7US-IRIG-B has all of the above features and can additionally be synchronized with stability of better than +/- 100 picoseconds with respect to an IRIG-B 1PPS signal and global time codes from a satellite receiver or local site time reference, allowing simultaneous synchronized acquisition of data at multiple locations anywhere in the world. Designed for demanding military, medical, scientific, industrial, communications, safety and electrical power utility applications, these boards have a wideband noise figure of 10dB and 1 dB peak-to-peak ripple over the DC to 250MHz frequency spectrum (2dB p-p over DC-500MHz).

All models include RedHat Linux 7.6 and Centos Linux 7.6 drivers and user programs with full source, as well as a comprehensive QT control panel

For more detailed information on the AD14-500x4-IRIG series of data acquisition products, please see the User Manual on the right.

PART NUMBER	DESCRIPTION
AD14-500x4-IRIG	14-Bit ADC, 40MSPS-500MSPS, 4 Ch, 8GB DRAM, XCKU040 FPGA, IRIG-B, 4GB/s
