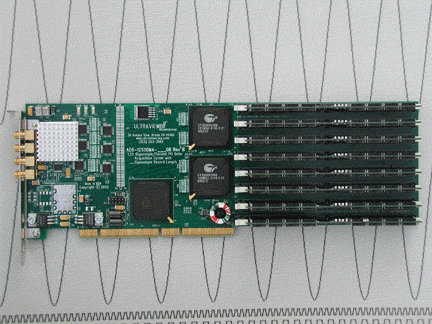

MODEL: AD8-1250DMA
PCI Data Acquisition Boards
AD8-1250DMA Series - 8 bit, 1.25 GS/s
- Model AD8-1250DMA contains a 1.25 gigasample/second 8 bit A/D, 8 GB of on-board SDRAM memory and the ability to transfer data directly into the computer system's memory at up to 320 MB/s on 64-bit PCI systems.
- Sampling is controlled by an external clock input, which may be in the frequency range between 20 MHz and 1250 MHz.
- Multiple boards may be configured to acquire either concurrently, for more simultaneous acquisition channels, or sequentially, with an automatic overlap selectable from 0 to nearly 2GB, in 512KB steps, for longer record length.
