PRODUCT INFORMATION

PCI Data Acquisition Boards

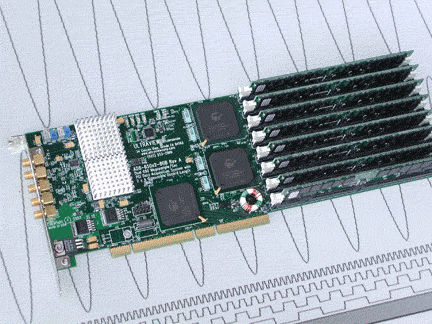

AD8-650X2DMA Series - 8 bit, 800MS/s

• Model AD8-650X2DMA is similar to the AD8-1250DMA, but contains two simultaneous-sampling A/D channels, each capable of sampling at up to 800 MS/s.
• Additionally, the AD8-650X2DMA has both an external clock input and an on-board internal clock that is software selectable to allow sampling at 640MS/s, 320MS/s, 160MS/s, 106.66MS/s, 80MS/s, 64MS/s, 53.33MS/s, 45.714MS/s, 40MS/s, 35.55MS/s, 32MS/s, ..., 20MS/s, ..., 10MS/s or 5MS/s.
• Sampling may either be controlled by this internal clock, or by a 20 to 800MHz external clock.
• The external clock may also be internally divided down just as the internal timebase can, as described above.
