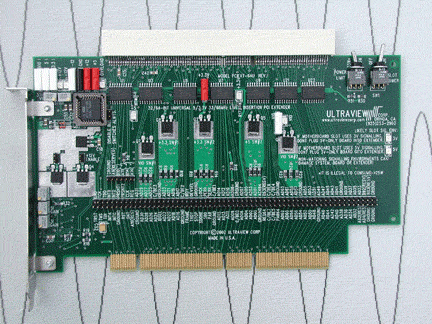

PCIEXT-64UB - Live Insertion PCI Bus Extender

The Ultraview PCIEXT64 extender series offers excellent PCI signal integrity, due to high speed trace layout, including high impedance signal traces and minimal ground inductance, as well as active bus isolation, to ensure minimal effect on the board-under-test. Power monitoring and current limiting features allow a robust debug and test environment.

Our most popular PCI Extender model for high volume production testing and engineering use, can be installed in either 3.3V or 5V, 66MHz and 33MHz, motherboard slots, and can accept both universal and 5V boards-under-test. Top-connector keying allows the insertion of universal or 5V boards under test, and provides better alignment for boards with out-of-spec gold finger region total length, but prohibits insertion of the fairly rare 3V-only boards under test. The PCIEXTUB can accept both universal (the most common PCI board type) and 5V-only boards under test, and has a more rugged connectors than the PCIEXT64U.
