MODEL: SYNTH300 SERIES

PCI Direct Digital Synthesizers

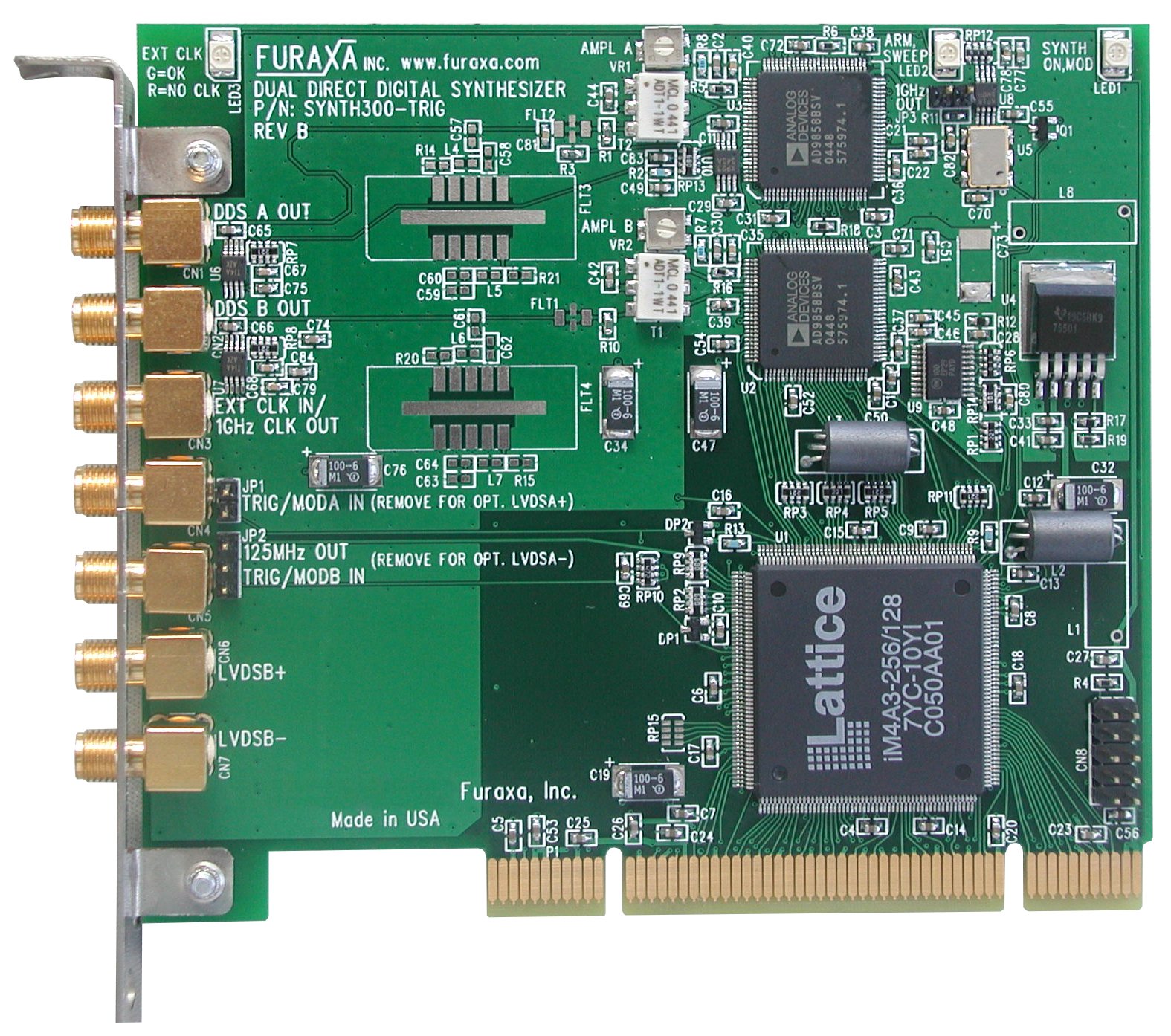

SYNTH300-TRIG


These devices provide two synchronized DDS-based RF channels on a single PCI card. With fine frequency and phase control, triggered operation, and the ability to accept an external clock, the Synth300 products enable a number of advanced applications at a fraction of the cost of conventional equipment. In addition to two analog outputs, the product can be ordered with one (or two) LVDS outputs for programmable digital clock applications, and can be configured for control by externally supplied TTL signals for low-latency triggered operation such as PSK, FSK, and triggered sweep operation.

Software support for Windows Vista, Windows XP, Linux and Labview source code available

For detailed specifications, please refer to the Synth300_Manual

Dual channel DDS-based PCI board, with 300 KHz - 300 MHz output capability. Advanced switching capability for triggered frequency sweeping, Phase Shift Keying (PSK), Frequency Shift Keying (FSK), Amplitude Shift Keying (ASK), On/Off Keying (OOK), and more.
